MAINTENANCE-FREE CONSTRUCTION FOR UNINTERRUPTED SERVICE

We build custom air cylinders to fulfill specific needs.

We offer three main types of pneumatic cylinders – Tie Rod, Round Line, and Micro Cylinders. Our air cylinder product line is designed for a variety of applications. Custom cylinders are also available to fulfill specific needs. We work with you to design and develop air cylinders to meet your requirements.  Browse our catalog below to view a variety of air cylinders.  We have a full line of tie rod cylinders, nose mount cylinders and even a single action air cylinder.

Every air cylinder is durable and maintenance-free.

We have a state of the art CNC machining facility in Round Lake, IL, where the components for each cylinder are precisely machined and carefully assembled using high quality seals. Each air cylinder is cycled and inspected before shipment. Every cylinder manufactured by Air-Mite is completely rebuildable.  We are sure to have the type and style of air cylinder you need from tie rod, to nose mount cylinders.  If you can’t find what you want we can build it for you.

VS Tie Rod Cylinder

Features Include:

VS Single-Acting, Rear Flange Mount Tie Rod Cylinder

1 cylinder size model number 2 blank=single rod DR= double rod 3 stroke length in inches (4” max) 4 blank= standard rotatable rod N= non-rotating rod 5 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

PS Tie Rod Cylinder

Features Include:

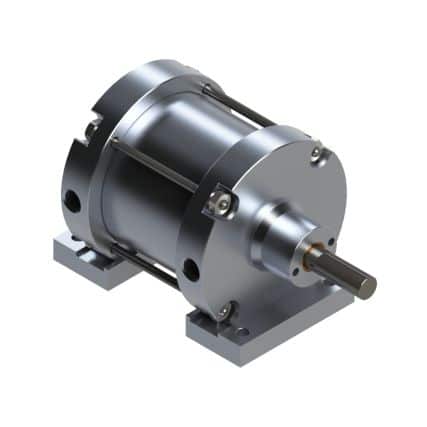

PS Single-Acting, Foot Mount Tie Rod Cylinder

1 cylinder size model number 2 blank=single rod DR= double rod 3 stroke length in inches (4” max) 4 blank= standard rotatable rod N= non-rotating rod 5 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

CPS Single-Acting Cylinder

Features Include:

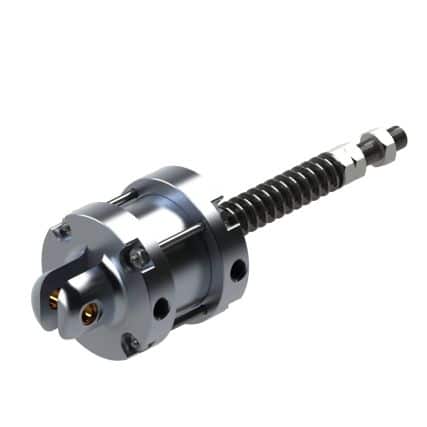

CPS Single-Acting, Clevis Mount Tie Rod Cylinder Pull Type- Normally Extended

1 cylinder size model number 2 stroke length in inches (4” max) 3 blank= standard rotatable rod N= non-rotating rod

Made in USA

CS Single-Acting, Clevis Tie Rod Cylinder

Features Include:

CS Single-Acting, Clevis Mount Tie Rod Cylinder

1 cylinder size model number 2 stroke length in inches (4” max) 3 blank= standard rotatable rod N= non-rotating rod 4 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

VFS Single-Acting, Flange Tie Rod Cylinder

Features Include:

VFS Single-Acting, Front Flange Mount Tie Rod Cylinder

1 cylinder size model number 2 blank=single rod DR= double rod 3 stroke length in inches (4” max) 4 blank= standard rotatable rod N= non-rotating rod 5 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

DPS Dbl-Acting, Foot Tie Rod Cylinder

Features Include:

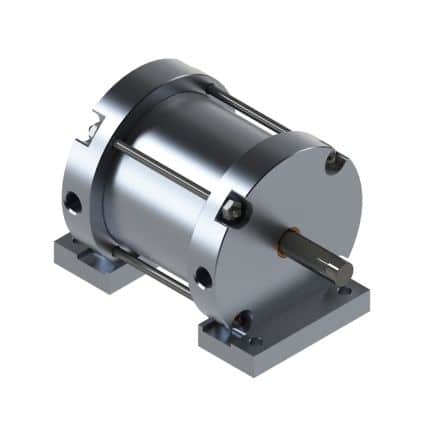

DPS Double-Acting, Foot Mount Tie Rod Cylinder

1 cylinder size model number 2 blank=single rod DR= double rod 3 stroke length in inches 4 blank= standard rotatable rod N= non-rotating rod 5 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

DVS Double-Acting, Rear Tie Rod Cylinder

Features Include:

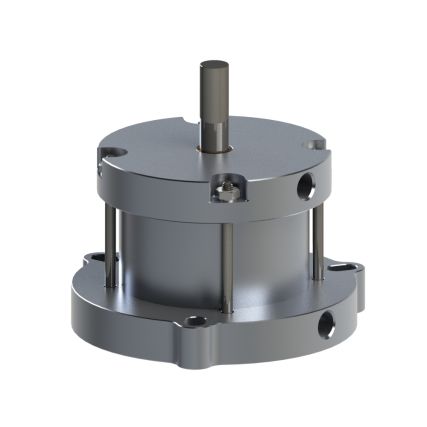

DVS Double-Acting, Rear Flange MountTie Rod Cylinder

1 cylinder size model number 2 blank=single rod DR= double rod 3 stroke length in inches 4 blank= standard rotatable rod N= non-rotating rod 5 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

DVFS Double-Acting, Front Flange Tie Rod

Features Include:

DVFS Double-Acting, Front Flange Mount Tie Rod Cylinder

1 cylinder size model number 2 blank=single rod DR= double rod 3 stroke length in inches 4 blank= standard rotatable rod N= non-rotating rod 5 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

DCS Dbl-Acting, Clevis Tie Rod Cylinder

Features Include:

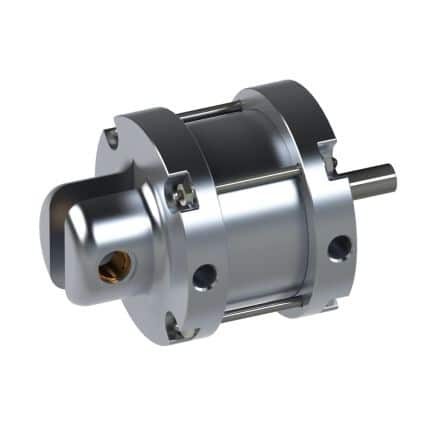

DCS Double-Acting, Clevis Mount Tie Rod Cylinder

1 cylinder size model number 2 stroke length in inches 3 blank= standard rotatable rod N= non-rotating rod 4 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

Single-Acting Foot & Nose Mount

Features Include:

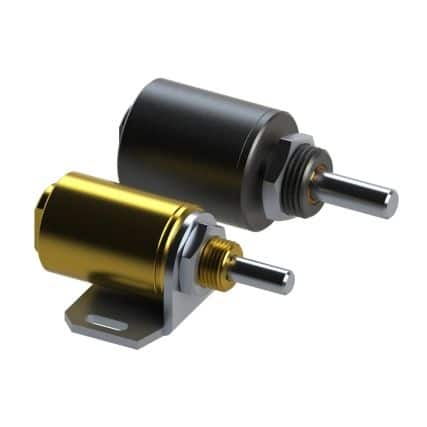

Micro Cylinder, Single-Acting Foot & Nose Mount

1 P= foot mount V= nose mount  2 75= ¾” bore   100= 1” bore 125= 1¼” bore 3 stroke length in inches 4 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

Double-Acting Foot & Nose Mount

Features Include:

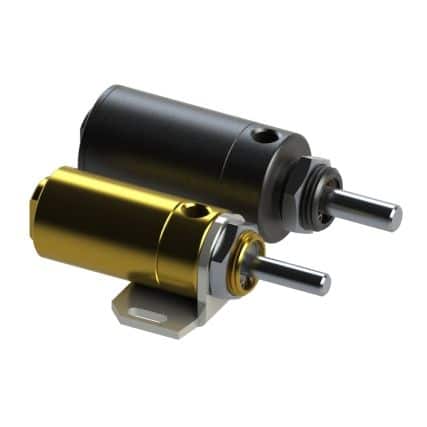

Micro Cylinder, Double-Acting Foot & Nose Mount

1 P= foot mount V= nose mount 100= 1” bore 125= 1¼” bore 3 stroke length in inches 4 blank= no rod threading T2= external threaded rod T3= reduced external threaded rod T4= internal threaded rod T5= other custom rod

Made in USA

Round Line Cylinder

Features Include:

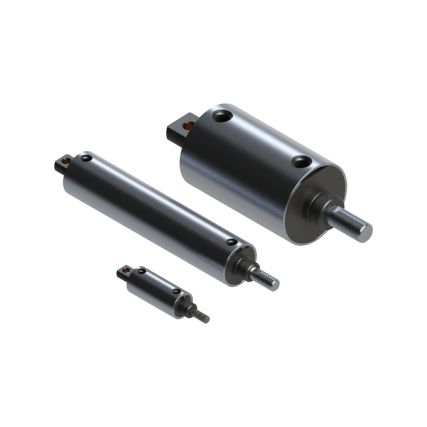

Round Line Cylinder

15=1½” bore 20=2” bore 25=2½” bore 30=3” bore 40=4” bore 2 stroke length in inches

Made in USA

Benefit from full service Air Cylinder support

Our air cylinder service has been developed to fully meet your needs, from the design and manufacture of the product itself, to the delivery and after sales support. We strive to build long term relationships with our clients, based on trust, reliability and quality. This is why we place an emphasis on quality and durability of the products themselves. It’s also why we strive to provide a custom manufacturing process that can meet the requirements of any pneumatic system. This all builds up to a sales and after sales process that places the customer first. If you’d have any questions, or would like to place an order for one of our air cylinders, contact us today.
