AFFORDABLE QUALITY AND VERSATILITY
Air-Mite has been manufacturing pneumatic presses since 1952.
We are continuously improving the durable, time-tested design of our presses. Our current air press line offers versatility, ease of use, and affordability. Our Pneumatic press options offer a simple means of applying force by using standard compressed air to perform a variety of pressing operations. By adjusting the pressure of the incoming air (within the limits), the user can greatly change the force applied by the press. An arbor press is a small hand operated press. It is typically used to perform smaller jobs, including staking, riveting, installing, configuring and removing bearings and other press fit work.We offer a variety of different pneumatic air presses to fit almost any situation. If you have any questions about any of our air presses be sure to call or contact us.
All of our presses are easily customizable to fit your exact needs.
In fact, most presses sold today are made to order. Air-Mite presses are uniquely designed with adjustable height cylinders. Raising or lowering the cylinder on the column changes the distance between the worktable surface and the retracted rod (also known as “daylight”). This feature accommodates a variety of workpiece and tooling sizes with the purchase of only one air press. With our decades of experience, we can consult with you on your design, and build you a custom pneumatic arbor press that fulfills all your requirements. If you need an arbor press with a specific set of requirements, be sure to browse our catalog. Be sure to contact Air-mite today – the leader in custom air press construction.
CMS4 400 lb Pneumatic Press
Features Include:
400 lbs of force at 100 psi
2.25” Bore, single piston cylinder 0.5” rod diameter 4.31” throat depth 120 psi maximum supplied air pressure Rigid cast-iron cylinder mounting brackets 6061 aluminum machined cylinder caps
Made in USA

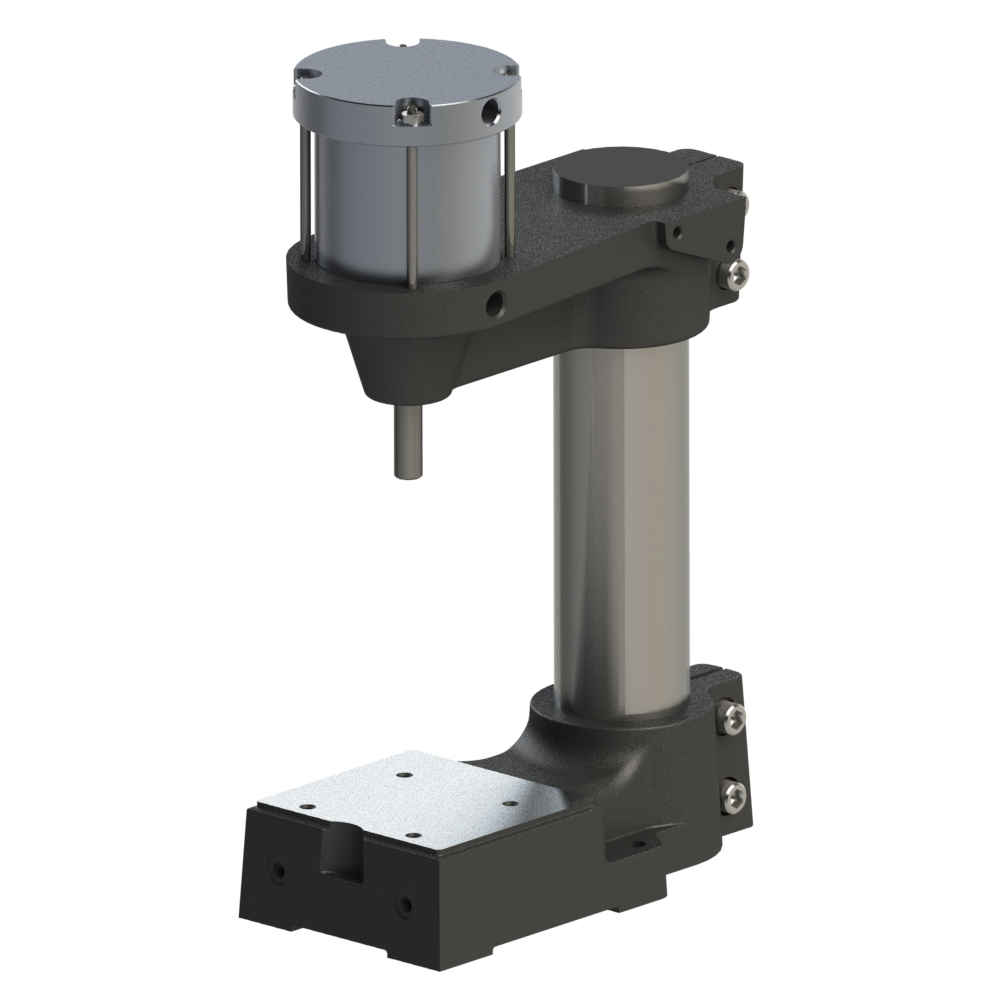

CMS7 700 lb Pneumatic Press
Features Include:
710 lbs of force at 100 psi
3.00” Bore, single piston cylinder 0.5” rod diameter 4.31” throat depth 120 psi maximum supplied air pressure Rigid cast-iron cylinder mounting brackets 6061 aluminum machined cylinder caps
Made in USA

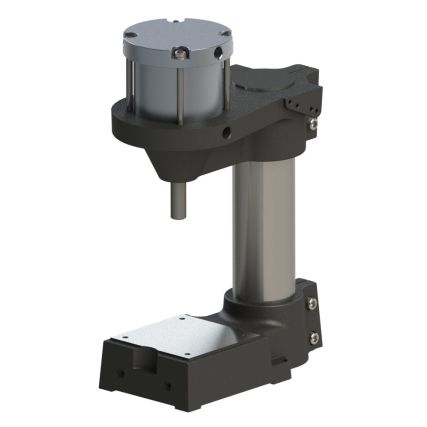

CMS12 1200 lb Pneumatic Press
Features Include:
1260 lbs of force at 100 psi
4” Bore, single piston-cylinder Double-acting cylinder* 0.75” rod diameter 4.5” throat depth 120 psi maximum supplied air pressure Rigid ductile iron cylinder mounting bracket 6061 aluminum machined cylinder cap PTFE piston wear strips Hardcoat anodized tubing
Made in USA

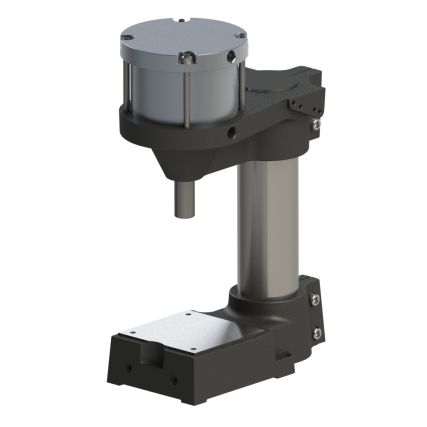

CMS19 1900 lb Pneumatic Press
Features Include:
1960 lbs of force at 100 psi
5” Bore, single-piston cylinder 1.00” rod diameter 4.5” throat depth 120 psi maximum supplied air pressure Rigid ductile iron cylinder mounting bracket 6061 aluminum machined cylinder cap PTFE piston wear strips Hardcoat anodized tubing
Made in USA
CMS24 2400 lb Pneumatic Press
Features Include:
2470 lbs of force at 100 psi
4” Bore, double piston cylinder 0.75” rod diameter 4.5” throat depth 120 psi maximum supplied air pressure Rigid ductile iron cylinder mounting bracket 6061 aluminum machined cylinder cap PTFE piston wear strips Hardcoat anodized tubing
Made in USA

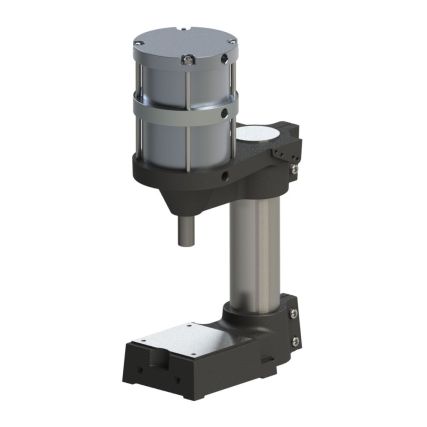

CMS38 3800 lb Pneumatic Press
Features Include:
3850 lbs of force at 100 psi
5”Bore, double piston cylinder Double-acting cylinder 1”rod diameter 4.5” throat depth 120 psi maximum supplied air pressure Rigid ductile iron cylinder mounting bracket 6061 aluminum machined cylinder cap PTFE piston wear strips Hardcoat anodized tubing
Made in USA
CMS58 5800 lb Pneumatic Press
Features Include:
5730 lbs of force at 100 psi
5” Bore, triple piston-cylinder Double-acting cylinder 1” rod diameter 4.5” throat depth 120 psi maximum supplied air pressure Rigid ductile iron cylinder mounting bracket 6061 aluminum machined cylinder cap PTFE piston wear strips Hardcoat anodized tubing
Made in USA
CONNECT
Durability is a top priority in Pneumatic Air Presses
Seeing that a pneumatic press has to withstand a huge amount of pressure, we place an emphasis on quality and durability. This is why we use only the best materials and the best processes when designing and developing our air presses. Whether we’re talking about a small arbor press or something larger, there is always a need to ensure that safety, quality and product longevity come first. Thanks to our long term experience with the design and manufacture of air presses, we are able to provide durable products that reduce your total cost of ownership (by removing the need for regular servicing, spare parts and replacement). We guarantee that you will not regret your investment. So if you are looking for quality products that do not incur extra costs, whether in terms of capital or time, contact us today, and we will help you find the perfect press for your project.
Focused on high quality, versatile and affordable air presses like the pneumatic press and Arbor press Air-Mite never cuts corners when it comes to craftsmanship, materials and performance. Manufactured in the United States in a state-of-the-art production facility, our pneumatic presses function at elite levels in even the highest of pressure situation. Trustworthy, reliable, efficient and effective our presses have been time tested to deliver results in a wide array of production settings. Regardless if you need a small hand operated press similar to an Arbor press or a custom crafted pneumatic press made to your exact specifications we can design and build the perfect press to meet whatever demands you may have. Always easy to use and understand we are here to make your next pneumatic press purchase effortless and successful.
Holding the ability to create made to order air presses for every occasion, we at Air-Mite separate ourselves from the competition through our unique and highly rated pneumatic press services. Designed with adjustable height cylinders, refined air pressure controls and durable and reliable construction materials there are no tasks too big or too small for our pneumatic presses. Often utilized for staking, riveting, installing, configuring, and removing fittings machinery such as our arbor press can accommodate a dynamic selection of job requirements. If you have a pneumatic press idea or necessity do not hesitate to contact us to go over all your options today!
