CUSTOM V-SERIES AIR CONTROL VALVE & MINI VALVES
We’ve been manufacturing air control valves since 1952.
Control the flow of air in your pneumatic systems with an Air Control Valve. Air-Mite offers two main types of pneumatic solenoid valves: the V-Series, and our line of Miniature Valves. Our V-Series Valves are available in both 3-way and 4-way configurations for the control of single and double-acting cylinders. These air valves are available with a variety of different operators: manual, mechanical, solenoid, or air-piloted. Not sure what type of pneumatic air control valve you need? Contact us and let us help. We have a large select of air valves including pneumatic solenoid valve to suit any requirement or specification.
Frequently Asked Questions – Air Valves
What are pneumatic air valves used for?
Pneumatic air valves control compressed air flow in automation systems, manufacturing equipment, and industrial machinery. They regulate pressure and direction of airflow to operate cylinders, actuators, and other pneumatic components.
How do pneumatic actuators work with air valves?
Pneumatic actuators convert compressed air energy into mechanical motion. Air control valves regulate the air supply to these actuators, controlling their speed, direction, and force output.
What’s the difference between 3-way and 4-way air valves?
3-way air valves control single-acting cylinders with pressure, exhaust, and supply ports. 4-way valves control double-acting cylinders with additional ports for reversing cylinder direction.
What size miniature valves do you offer?
Our miniature valves range from ultra-compact designs under 1 inch to standard mini valves up to 2 inches, perfect for space-constrained applications.
Each air control valve is customizable to fit your exact needs.
The unique design of our air control valve assortment allows for custom designs to be easily created to adapt to your special needs. If we don’t list the pneumatic solenoid valve you need, please contact us as we most likely can design one to suit your exact specifications. Air-Mite’s Miniature air valve line of small 3-way poppet and spool valves offer a variety of manual and mechanical operators in a space-saving design. When it comes to pneumatic valves no one has more experience or knowledge. Contact us today to find out more about our l air control valve selection and our pneumatic solenoid valves.
Industry Applications
Air-Mite air valves serve diverse industrial sectors with precision-engineered solutions. Our pneumatic air valves are essential components in automotive assembly lines, where they control robotic welding equipment and automated part handling systems. In packaging machinery, our air control valves regulate conveyor systems and filling equipment for consistent product handling.
Food processing facilities rely on our miniature valves for sanitary applications, including portion control systems and automated packaging lines. Medical device manufacturing uses our precision pneumatic control valves for diagnostic equipment and surgical instrument automation.
Aerospace applications demand our highest-grade air valves for aircraft testing equipment and ground support systems. Our arbor press valves are specifically engineered for metalworking and fabrication operations, providing precise force control for stamping, forming, and assembly processes.

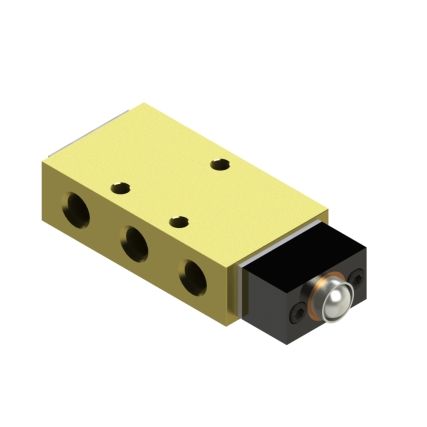

Ball Cam Control Valve
Features Include:
Ball Cam Control Valve
Mechanically operated by ball plunger 3-way or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes
Available as 2-position spring-return or 2-position pilot return
Made in USA

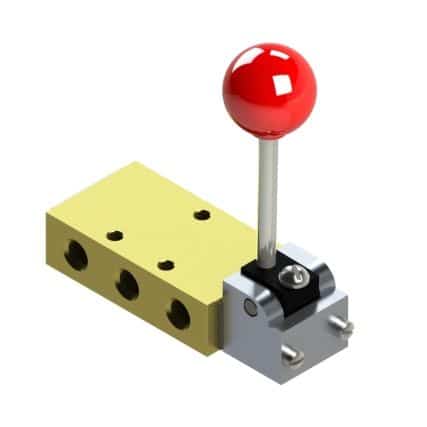

Hand Ball Control Valve
Features Include:
Hand Ball Control Valve
Manually operated by hand lever 3-way or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes Available as 2-position, 2-position spring-return, 3-position detented, or 3-position spring to center Open or closed center for 3-position
Made in USA

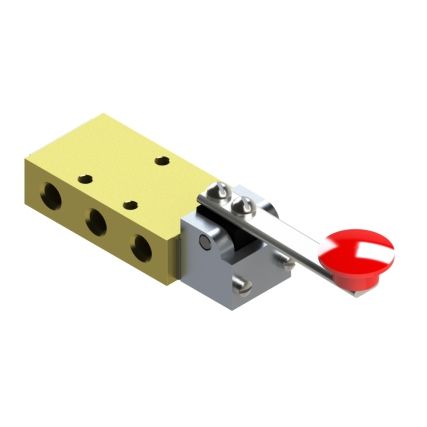

Finger Lever Control Valve
Features Include:
Finger Lever Control Valve
Manually operated by finger lever3-way or 4-way configuration1/8”, ¼”, 3/8”, or ½” port sizes Available as 2-position spring-return
Made in USA

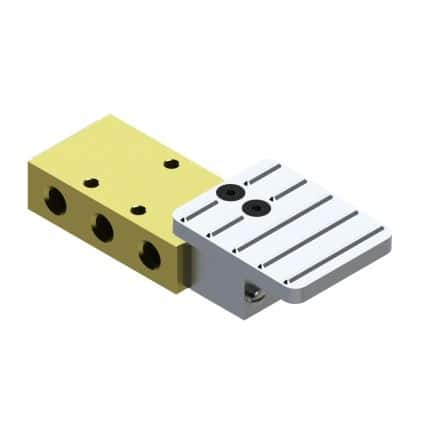

Pedal Control Valve
Features Include:
Pedal Control Valve
Foot-operated by pedal 3-way or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes Available as 2-position spring-return Safety Foot Guard- FG300 is strongly recommended to prevent accidental tripping of valve
Made in USA

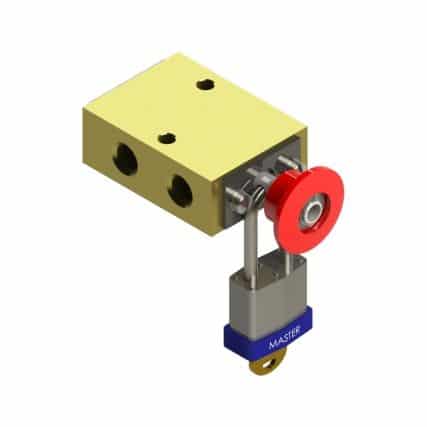

Lockout Control Valve
Features Include:
Lockout Control Valve
Manually operated by palm button Can be locked out in off position Includes padlock 3-way or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes
Available as 2-position only
Made in USA

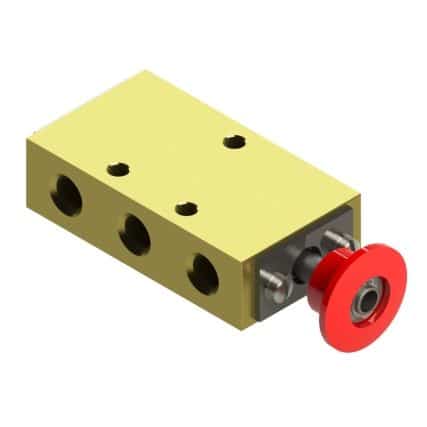

Palm Button Control Valve
Features Include:
Palm Button Control Valve
Manually operated by palm button 3-way or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes Available as a 2-position, 2-position spring-return, 3-position detented, 3-position spring to center Open or closed center for 3-position
Made in USA

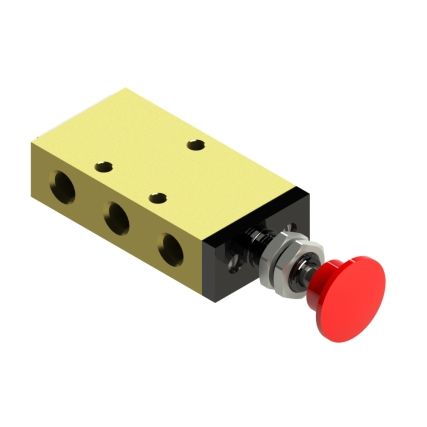

Panel Mount Control Valve
Features Include:
Panel Mount Control Valve
Manually operated by palm button Allows for mounting through a panel 3-way or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes Available as 2-position only
Made in USA

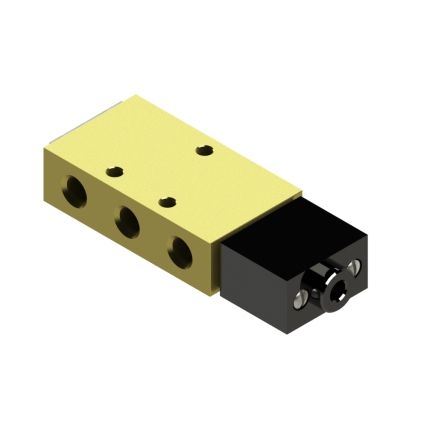

Pilot Control Valve
Features Include:
Pilot Control Valve
Pilot operated by air pressure 3-way or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes Available as a 2-position single-pilot (spring-return) or 2-position double-pilot Minimum Operating Pressures: Standard Pilot single-pilot (spring-return): 25 psi double-pilot: 10 psi Low Pressure Pilot single-pilot (spring-return): 15 psi double-pilot: 7 psi
Made in USA

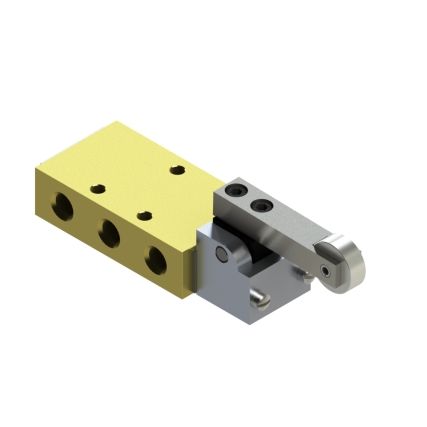

Roller Cam Control Valve
Features Include:
Roller Cam Control Valve
Mechanically operated by roller cam 3-way or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes Available as 2-position spring-return or 2-position pilot-return
Made in USA

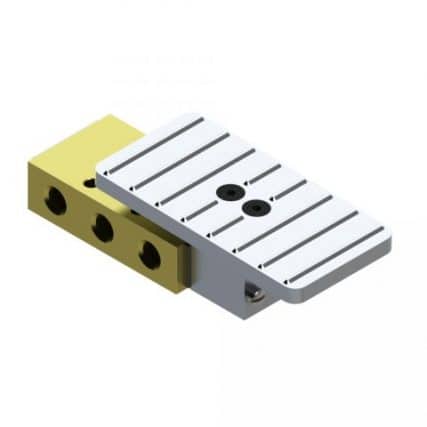

Treadle Control Valve
Features Include:
Treadle Control Valve
Foot-operated by a pedal that allows motion both backward and forwards 3-way or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes Available as a 2-position, 3-position detented, 3-position spring to center Open or closed center for 3-position Safety Foot Guard- FG300 is strongly recommended to prevent accidental tripping of valve
Made in USA

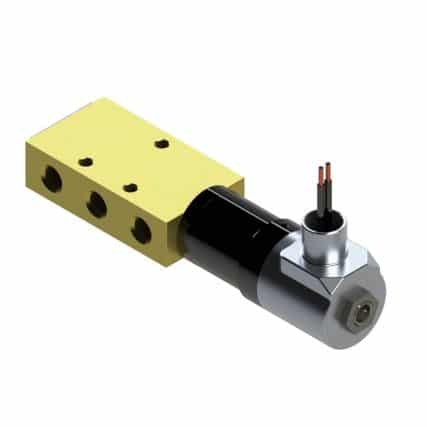

Solenoid Control Valve
Features Include:
Solenoid Control Valve
Electrically operated by solenoid Voltage options available stock Valves internally piloted-no secondary air supply needed Explosion proof operators optional 3 or 4-way configuration 1/8”, ¼”, 3/8”, or ½” port sizes Available as 2-position single-solenoid (spring-return) or 2-position double-solenoid Minimum operating pressures: single-solenoid (spring-return): 15 psi double-solenoid: 7 psi
Made in USA

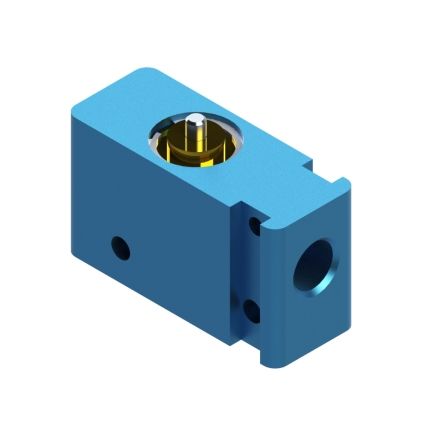

MV2-A Miniature Valve
Features Include:
MV2-A Miniature Valve
Basic valve with no operator 1/8” diameter push button Spring return 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA

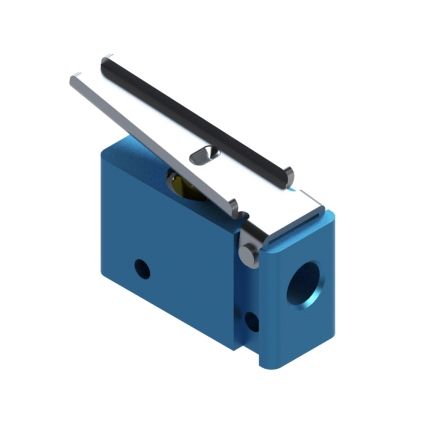

MV2-B Miniature Valve
Features Include:
MV2-B Miniature Valve
Lever operator 1-7/8” long steel lever Spring return 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA

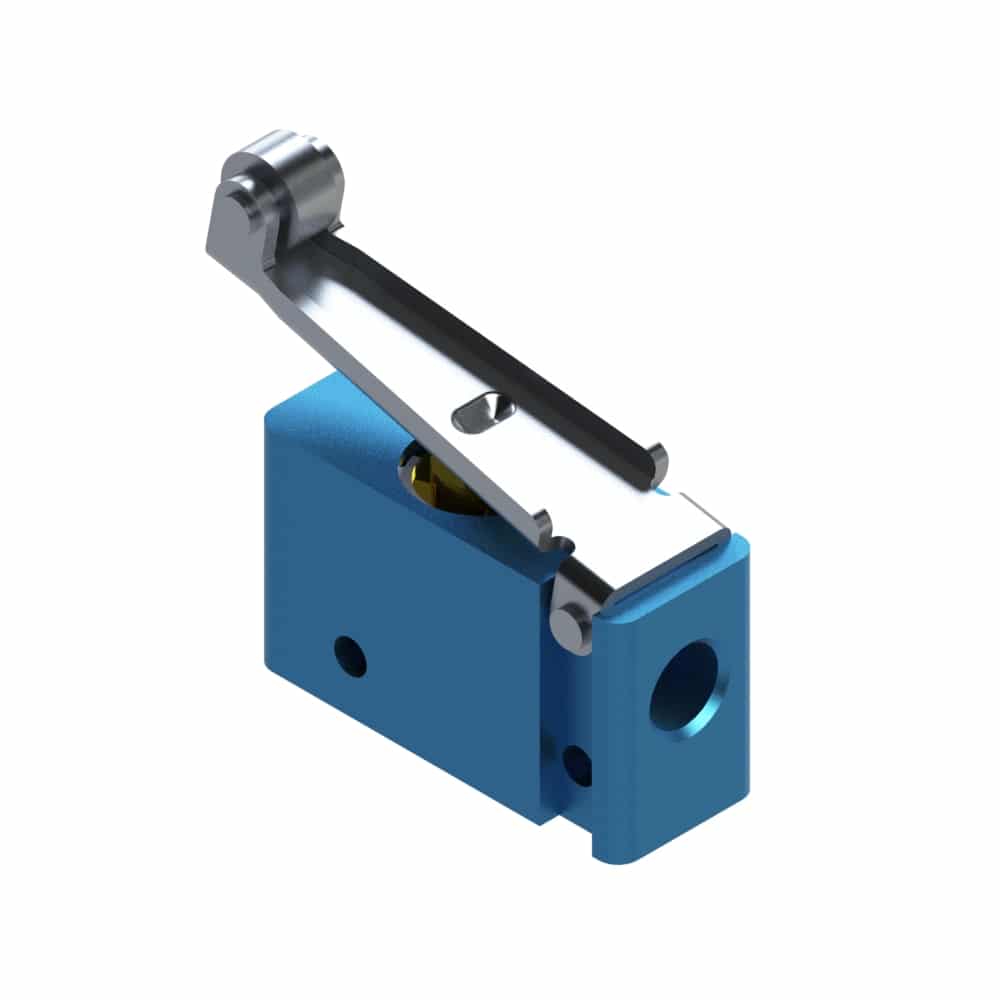

MV2-C Miniature Valve
Features Include:
MV2-C Miniature Valve
Roller lever operator 3/8” diameter roller on lever Spring return 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA

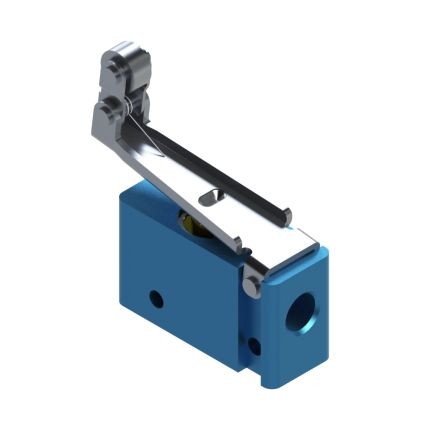

MV2-D Miniature Valve
Features Include:
MV2-D Miniature Valve
One-way roller lever operator 3/8” diameter roller on lever Valve only actuates from one direction Spring return 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA

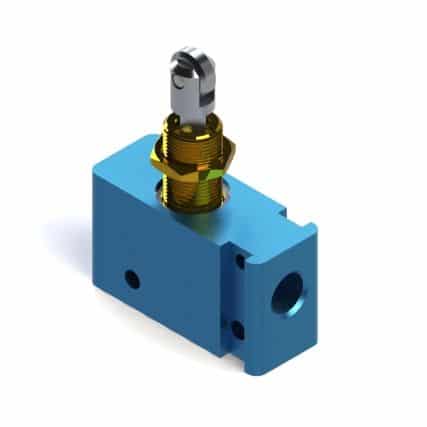

MV2-E Miniature Valve
Features Include:
MV2-E Miniature Valve
Roller plunger operator 3/8” diameter roller on plunger Roller is oriented parallel to valve body Spring return Can be mounted through a panel 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA

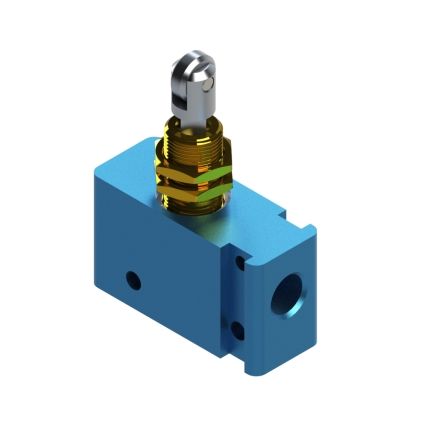

MV2-F Miniature Valve
Features Include:
MV2-F Miniature Valve
Roller plunger operator 3/8” diameter roller on plunger Roller is oriented perpendicular to valve body Spring return Can be mounted through a panel 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA

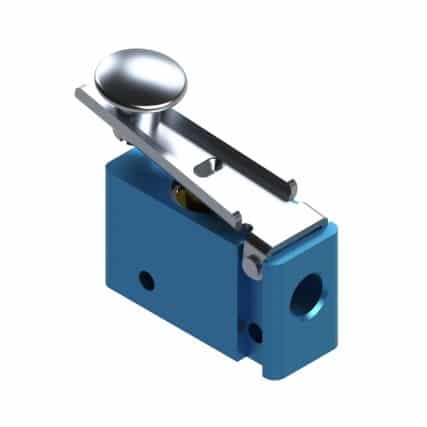

MV2-G Miniature Valve
Features Include:
MV2-G Miniature Valve
Fingertip lever operator Finger button mounted on lever Spring return 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA

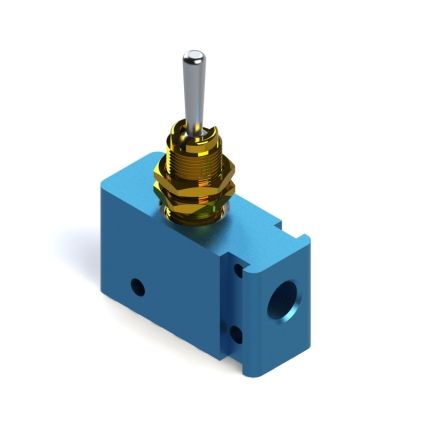

MV2-H Miniature Valve
Features Include:
MV2-H Miniature Valve
Toggle operator Toggle can be operated in any direction Can be mounted through a panel 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA

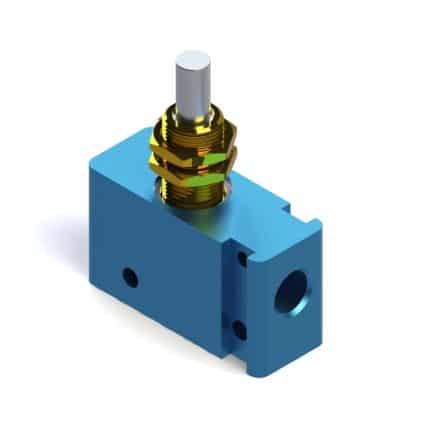

MV2-J Miniature Valve
Features Include:
MV2-J Miniature Valve
Plunger operator 9/32” diameter steel plunger Spring return Can be mounted through a panel 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA

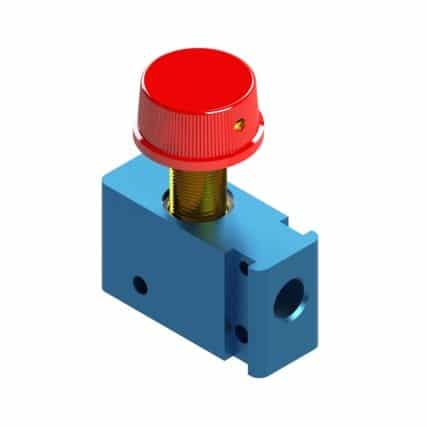

MV2-K Miniature Valve
Features Include:
MV2-K Miniature Valve
Knob operator 1” diameter plastic knob mounted on plunger Spring return Can be mounted through a panel 3-way configuration 1/8” port size Can be used normally open or normally closed
Made in USA
Technical Specifications
Our pneumatic control valves operate across pressure ranges from 0-150 PSI, with flow rates up to 25 SCFM depending on valve configuration. Standard air control valves accommodate industrial applications requiring higher flow rates, while our miniature valves feature compact designs under 2 inches for space-limited installations.
Operating temperatures range from -40°F to +180°F across our valve lineup. All pneumatic air valves feature corrosion-resistant materials and precision-machined components for extended service life. Our pneumatic actuators integrate seamlessly with both 3-way and 4-way valve configurations.
Response times vary by valve type: solenoid air valves offer millisecond response, while manual air control valves provide precise operator control. All valves meet or exceed industry standards for durability and performance.
Superior Pneumatic Air Valve Solutions
Our commitment to quality is unmatched. We continuously track the newest market developments, enabling us to tailor our offerings and stay ahead of the curve. This translates directly into higher quality valves that last longer and improve the overall efficiency of your pneumatic system.
Seven Decades of Industry Leadership
With over 7 decades of industry experience, Air-Mite is the most qualified U.S.-based company for pneumatic air valves. We stay immersed in the latest innovations and advanced technologies for systems and components like pneumatic solenoid valves, air control valves, and miniature valves.
Comprehensive Product Line
Our pneumatic air valves inventory is unmatched. We offer an extensive collection of manual and mechanical air control valve operators in space-saving designs and customizable formats:
- Pneumatic solenoid valves
- Ball cam control valves
- Hand ball control valves
- Finger lever control valves
- Pedal control valves
- Lockout control valves
- Palm button control valves
- Panel mount control valves
- Pilot control valves
- Roller cam control valves
- Treadle control valves
Miniature Valve Options:
- MV2-A through MV2-K miniature valves
- Space-saving 3-way and 4-way configurations
- Custom designs for unique applications
Ready to Find Your Perfect Air Valve Solution?
Whether you need standard pneumatic air valves, specialized miniature valves, or custom pneumatic actuators, our experienced team is ready to help. With over 70 years of manufacturing expertise, we’ll match you with the right air control valve for your specific application.
Contact our pneumatic valve specialists today for expert guidance on selecting the optimal solution for your system. We have consultants standing by ready to assist with your air valve questions and provide custom quotes for your project requirements.
We place an emphasis on quality and durability in all of our Pneumatic Air Control Valves
Our commitment to quality is second to none. We are constantly keeping track of the newest market developments, which enables us to tailor our offering and stay ahead of the curve. This directly translates into a higher quality valve that is longer lasting, and which improves the overall efficiency of your pneumatic system. This is true across our current selection of products, from the manual to the solenoid air valve. If you’d like to find out more about our products, and how we can develop a solution for your system, contact us today.
With over 7 decades of industry experience under our belts at Air-Mite there are no U.S. based companies as qualified as we are when it comes to pneumatic air valves. We are always staying immersed in the latest innovations and the most advanced technologies when it comes to systems and components like the pneumatic solenoid valve, the air control valve, and the mini valve which is why we have the lead among competitors. Staying on the cutting edge of all things related to pneumatic air valves is what allows us to deliver superior results over other manufactures. From pneumatic solenoid valves, ball cam control valves, to hand ball control valves, to finger lever control valves, to pedal control valves, to lockout control valves, to palm button control valves, to panel mount control valves, to pilot control valves, to roller cam control valves and so much more our pneumatic air valves inventory is second to none among sellers. Offering an extensive collection of manual and mechanical air control valve operators in space-saving designs as well as customizable formats that fit your specific blueprints there is no request we cannot fill. The V-Series valves are available in both 3-way and 4-way configurations for the control of single and double-acting cylinders so there really is no limit to what is possible in terms of potential capability.
If you are looking for the very best in pneumatic air valves, we at Air-Mite have you covered. The market leader in products such as the pneumatic solenoid valve, the air Control valve, and the mini valve we strive for 100% customer satisfaction with every transaction. Long lasting, maintenance friendly, and uniquely structured air valves are what we specialize in giving customers access to the top of the line parts available. From treadle control valves, to pneumatic solenoid valves with controls, to mv2-a mini valves, to mv2-b miniature valves, to mv2-c miniature valves, to mv2-d miniature valves, to mv2-e miniature valves, to mv2-f miniature valves, to mv2-h miniature valves, to mv2-j miniature valves, to mv2-k mini valves there is nothing we cannot handle. If you are still left with air valve questions, we have consultants standing by ready to assist with your inquiries.
Pneumatic systems are integral to modern industrial automation, and at the heart of these systems lie a variety of valves that control the flow of compressed air. Among these, Pneumatic Air Valves stand out as essential components. These valves regulate the passage of air, enabling precise control over pneumatic actuators and other devices. Their reliability and efficiency are paramount in ensuring smooth and consistent operation within automated processes.
A specialized form of the Pneumatic Air Valve is the Pneumatic Solenoid Valve. This type of valve utilizes an electrical signal to actuate the valve, providing rapid and accurate control of airflow. The ability to quickly respond to electrical signals makes Pneumatic Solenoid Valves indispensable in applications that demand precise timing and control. These valves are widely used in automated assembly lines, robotic systems, and other applications where speed and accuracy are critical.
Another crucial component within pneumatic systems is the Pneumatic Control Valve. These valves are designed to regulate the pressure and flow rate of compressed air, allowing users to fine-tune the performance of their systems. Proper control of air pressure and flow is essential for maintaining optimal operating conditions and preventing damage to equipment. By precisely regulating these parameters, Pneumatic Control Valves contribute to the efficiency and longevity of pneumatic systems.
For applications where space is a constraint, Mini Valves offer a compact and lightweight solution. These valves are designed to provide efficient airflow control in confined spaces, making them suitable for a wide range of applications.
From medical devices to small-scale automation systems, Mini Valves deliver reliable performance in space-limited environments.
Airmite recognizes the significance of high-quality pneumatic valves in industrial settings. The company specializes in providing reliable and durable valves that meet the demanding requirements of modern manufacturing. Airmite’s commitment to quality ensures that its Pneumatic Air Valves, Pneumatic Solenoid Valves, Pneumatic Control Valves, and Mini Valves deliver consistent performance and long-lasting durability.
The company’s focus on innovation and customer satisfaction has established it as a trusted provider of pneumatic solutions for various industries. Airmite understands that the precision and reliability of pneumatic systems are crucial for maximizing productivity and efficiency. The company’s dedication to providing top tier valves, allows its customers to focus on their own production needs, knowing that the pneumatic systems will perform as designed.
For more information, please browse our website. Please do not hesitate to contact us with any questions you may have.
